主要应用于电动窗帘机、小型幕布、舞台灯具、电动器械及自动化仪器仪表... Used in electric curtain,small stage curtain,stage lamp,electric machine and automatic instrument and metre
额定电压 Rate voltage
伏 V
220
额定频率 Rated frequency
赫兹 Hz
50/60
输入功率 Input power
瓦 W
≤4 / 3.5
出轴转速 Output speed
转/分 r/min
5 / 6
输出转矩 Output torpue
牛顿/厘米 N/CM
7
旋转方向 Ratation direction
CW / CCW
工作电压可根据用户要求变动(12-220V) Operation voltage changed with user's demand (12-220V)

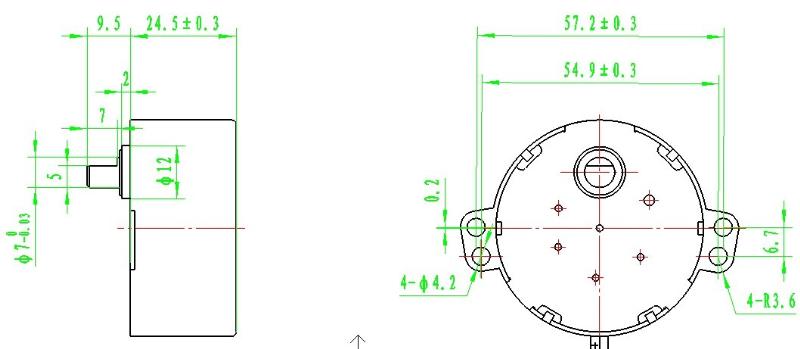

出轴的长度及直径可根据用户要求制作 Output shaft diameter and length made with user's demand
附注: 1.工作电压可根据用户要求设计:12-240VAC Operation voltage changed with user's demand:12-240VAC 2.电机输出轴长短、粗细可按用户要求制作(最大外径≤7mm) Output shaft diameter and length made with user's demand
接线图/W.G.
